ID-1120 Detector Switches


Specifications
Circuitry: SPST, normally open (N.O.)
Contact Rating: 30VDC 0.1A max.
Contact Resistance: 1 ohm max.
Insulation Resistance: 100 megaohms min. @ 250VDC - 1 minute
Dielectric Strength: 250VDC - 1 minute
Life: 50,000
Terminal: through hole or surface mount
Operating Force: 36gf
 Push Stroke: 3mm
Soldering: 260+/-5C for 3s (auto); 350+/-10C for 3s (manual)
RoHS Compliant: yes
Packaging: 1000 switches/bag; 750 switches/reel
Manufacture: IL Switch


-Light operation force
-Operational direction

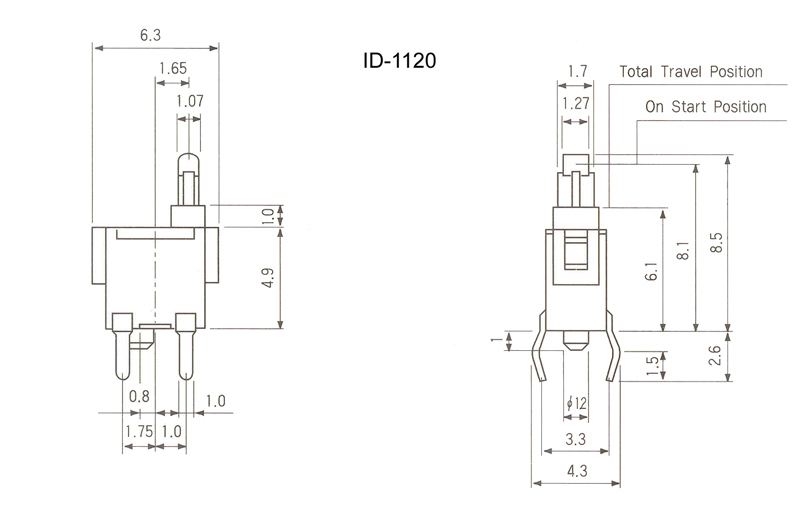

P/N: ID-1120
(upright, thru hole)		 P/N: ID-1120AS
(left operation, SMD)		 P/N: ID-1120BS
(right operation, SMD)

Panasonic ESE11
