Plastic Shaft Rotary Encoder Switch ( Mechanical,Incremental, With Push-On Switch for Tune and Volume Control, RE12 )

info@switchchannel.com

RE12 PLASTIC SHAFT ROTARY ENCODER SWITCH

SPECIFICATION
Resolution: 24 pulses/rev
Power Rating: 5V/10mA DC (1mA min.)
Contact Resistance: 100 milliohms max. @ initial
Insulation Resistance: 100 megaohms min. @ 50V/1mA DC
Dielectric Strength: 50V AC for 1 minute (leak current 1mA)

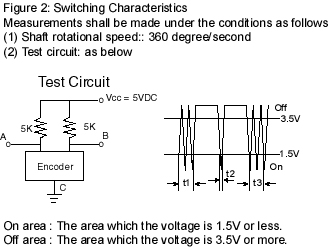

Chattering: t1, t3<3ms
Sliding Noise: t2<2ms
Phase Difference: 0.8T
Electrical Life: 30,000 cycles
Operating Temperature: -10 to +70 Celsius
Storage Temperature: -40 to +85 Celsius
Number of Detent: 24
Detent Torque: 3~20mN.m
RoHS Compliant: yes

MATERIAL (lead free)
Shaft: PC (94V-0)
Encoding Base: PBT (94V-0)
Bouncing Tips: JIS-H-3130 C 7701R
Pulsated Piece: Phosphor bronze
Bushing: Tinplate plated bright-tin
Encoding Terminal: Phosphor bronze plated silver
Push Plate: POM
Contact: Phosphor bronze
Switch Base: POM
Switch Terminal: Phosphor bronze plated silver

Contact: info@switchchannel.com


RE12CT-V24A
