DS-15 BCD PUSHWHEEL SWITCH

The DS-15 series pushwheel switches provide many features and at least 100,000 cycles of operating life.  All models features white character on black background, a bi-directional snap action detent mechanism, and dust seal.  The DS-15 model is a low cost, standard size, binary coded pushwheel switch that mounts in a 14.3x10.9mm panel cutout.


SPECIFICATION
Operating Voltage: 50VAC/28VDC
Switching Current: 100mA max.
Carrying Current: 1A max.
Contact Resistance: 200 milliohms max.
Insulation Resistance: 500 megaohms min. (between output & non-carrying part) and 10 megaohms min. (between outputs)
Dielectric Strength: 1,000VAC for 1 minute (between output & non-carrying part) and 500VAC for 1 minute (between outputs)
Life Cycle: 200,000 operations
Operating Force: 300 to 500g
Operating Temperature: -20 to +60C
MATERIAL
Actuator: Plastic
Slide Cover: Plastic
Chassis: Plastic
Panel: Acrylic
Spring: Stainless steel wire
Wheel: ABS
Contact: Gold plated phosphor bronze
Terminal: Gold plated phosphor bronze
PC Board: Gold plated phosphor bronze

 Contact: info@switchchannel.com
DS-15P-71Q
(Pin push, 0-7) 		DS-15T-71Q
(Finger push, 0-7) 		DS-15P-91Q
(Pin push, 0-9) 		DS-15P-94Q
(Pin push, 0-9)

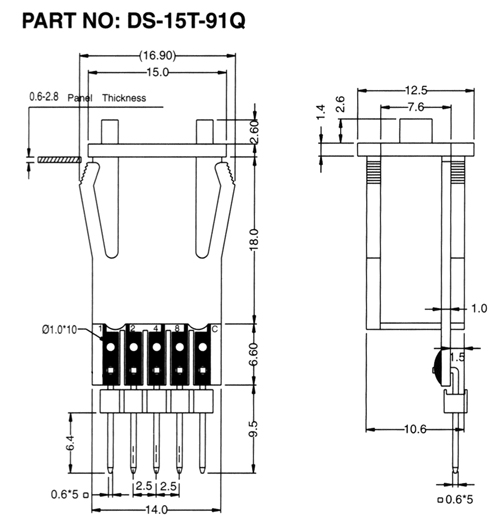

DS15 pushwheel switch dimension drawing
