JS-608-R ROCKER SWITCH


SPECIFICATIONS
Circuitry: on-off
Dielectric Strength: 1,000VAC for 1 minute
Insulation Resistance: 100 megaohms min. @ 500VDC
Contact Resistance: 30 milliohms max. @ initial
Power Rating: 10A 125VAC/250VAC (CSA, UL, TUV).
Electrical Life: 10,000 operations
Actuation Force: 1,300 to 1,700 grams
Terminal: 6.4mm QC
Color: Black
Operating Temperature: -25 to +100°C
Solderability: 280°C 3 seconds
MATERIALS
Rocker: Nylon 66
Casing: Nylon 66
Plunger: Nylon 66
Contact: Silver plated copper alloy
Moving Contact: Brass
Spring: Piano steel wire
Terminals: Tin plated brass

Contact: info@switchchannel.com

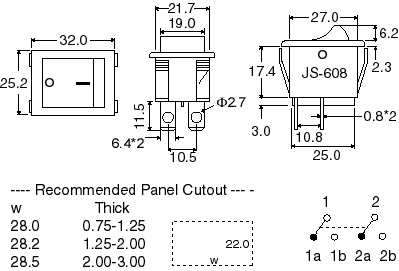

JS-608-R (maintained contact)
