SPECIFICATION
Feature: Momentary contact
Circuit: SPDT
Rating: 6VDC 0.3A
Contact Resistance: 70 milli-ohms max. @ 1A/5VDC
Insulation Resistance: 100 mega-ohms min. @ 500 VDC 1 minute
Withstand Voltage: 500 VAC for 1 minute
Timing: Non-shorting
Travel: 2mm
Operation Force: 150+/-100gf
Mounting: Surface mount
Terminal Pitch: 2mm

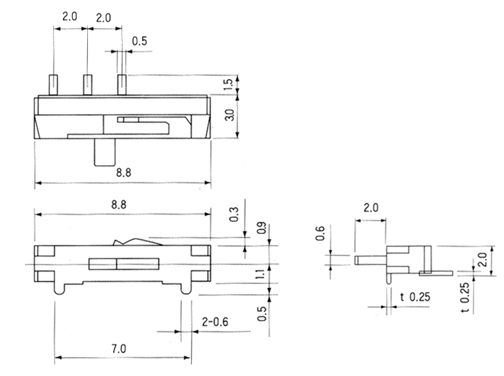

Body Dimension: 8.8 x 2 x 3mm
Profile: 2mm
Bracket Mounting Pitch: 7mm
Packaging: Tape and reel
