IS-2301 SLIDE SWITCH


SPECIFICATION
Circuit: 2 poles 3 positions
Rating: 30VDC 0.1A
Contact Resistance: 70 milliohms max. @ 5VDC 1A
Insulation Resistance: 100 megaohms min. @ 500VDC for 1 minute
Withstand Voltage: 500VAC for 1 minute
Travel: 2mm
Operation Force: Left > Center < Right (300+100gf);  Left < Center > Right (200+100gf)
Mechanical Life: 10,000
RoHS Compliant: yes

Contact: info@switchchannel.com



IS-2301B (knob=9mm)
3 position miniature slide switch SL105 photo

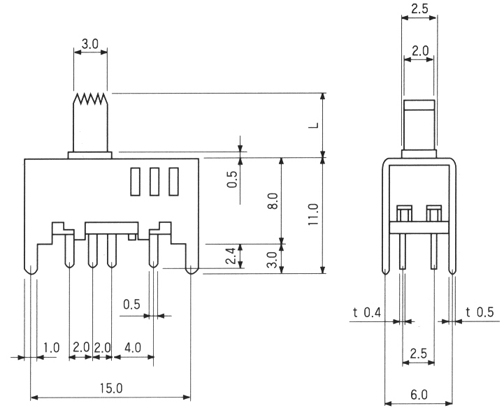

3 position miniature slide switch SL105 dimensional drawing
