SL1-22 Slide Switches


Feature: wash through open frame construction

Specifications
Circuitry: SPDT, DPDT
Power Rating: 6A/125VAC, 3A/250VAC
Contact Resistance: 50 milliohms max. @ initial
Insulation Resistance: 100 megaohms min. @ 500VDC
Dielectric Strength: 1,800VAC for 1 minute (cover to terminal); 1,000VAC for 1 minute (terminal to terminal)
Electrical Life: 6,000
Terminal: solder lugs, PCB pins, right-angle pins
Operation Force: 500+/-200g
Push Stroke: 4.9mm
Weight: 5~6g
Operating Temperature: -00 to +85C
RoHS Compliant: yes
Safety Standard Approval: CSA, UL
Packaging: 200 switches per bag
Manufacture: Solteam Electronics


Material List
Actuator:
polybutylene terephthalate (PBT)
Base: phenolic laminate
Frame: zinc plated iron
Contact: silver plated phosphor bronze
Terminal: tin plated copper


Contact: info@switchchannel.com

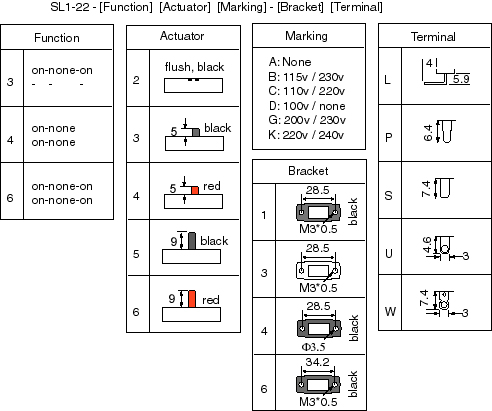

SL1-22-61A-3W

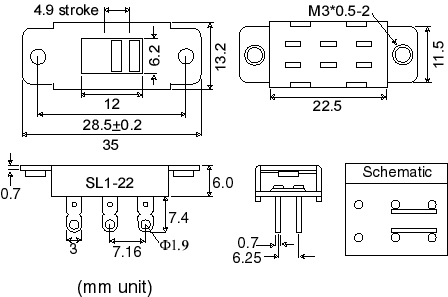

Voltage selector switch SL1_22 dimension drawing
